Continuous 2D optical wave stream carrier with neural 1D demodulation and Galois Field Reed-Solomon error correction.

standby
Continuous 16-APSK stream 0 / 39 B
Color Palette
Decoded Payload Ready
↑
Load Wave Carrier
Drag & drop image, paste from clipboard,
or click to browse
Architecture

System Overview.

End-to-end signal processing pipeline combining spatial optical modulation with deep convolutional classification.

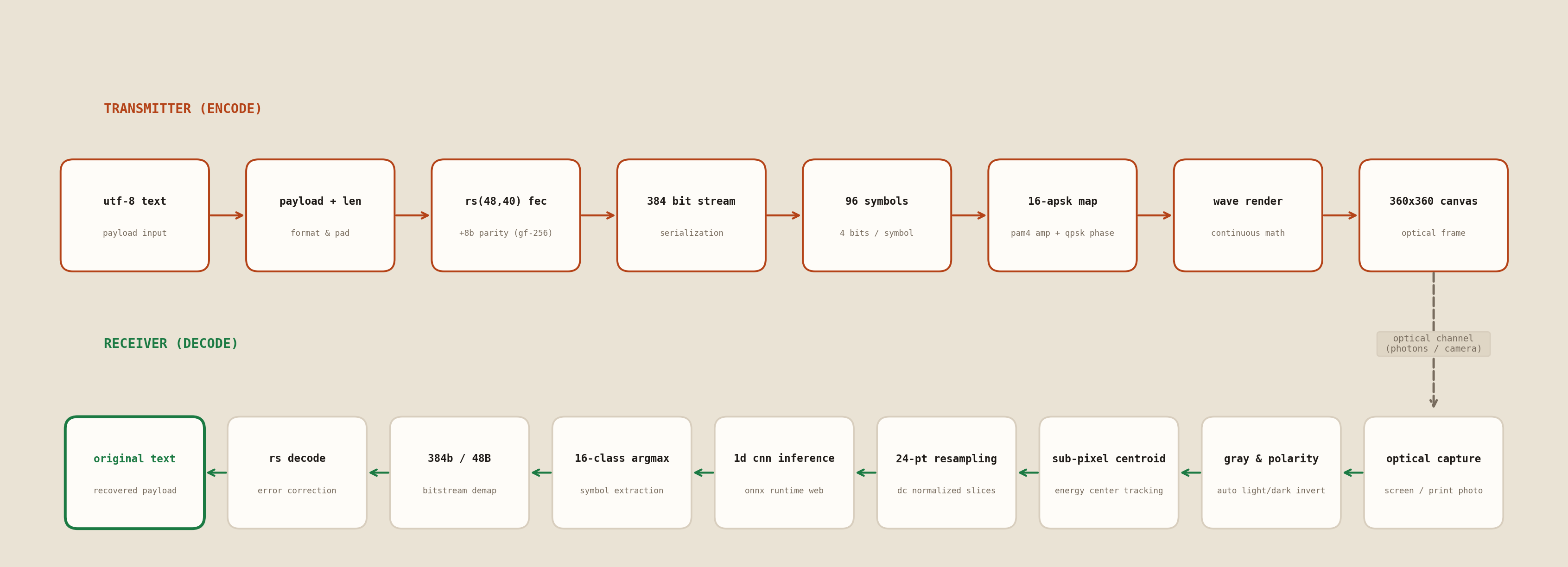

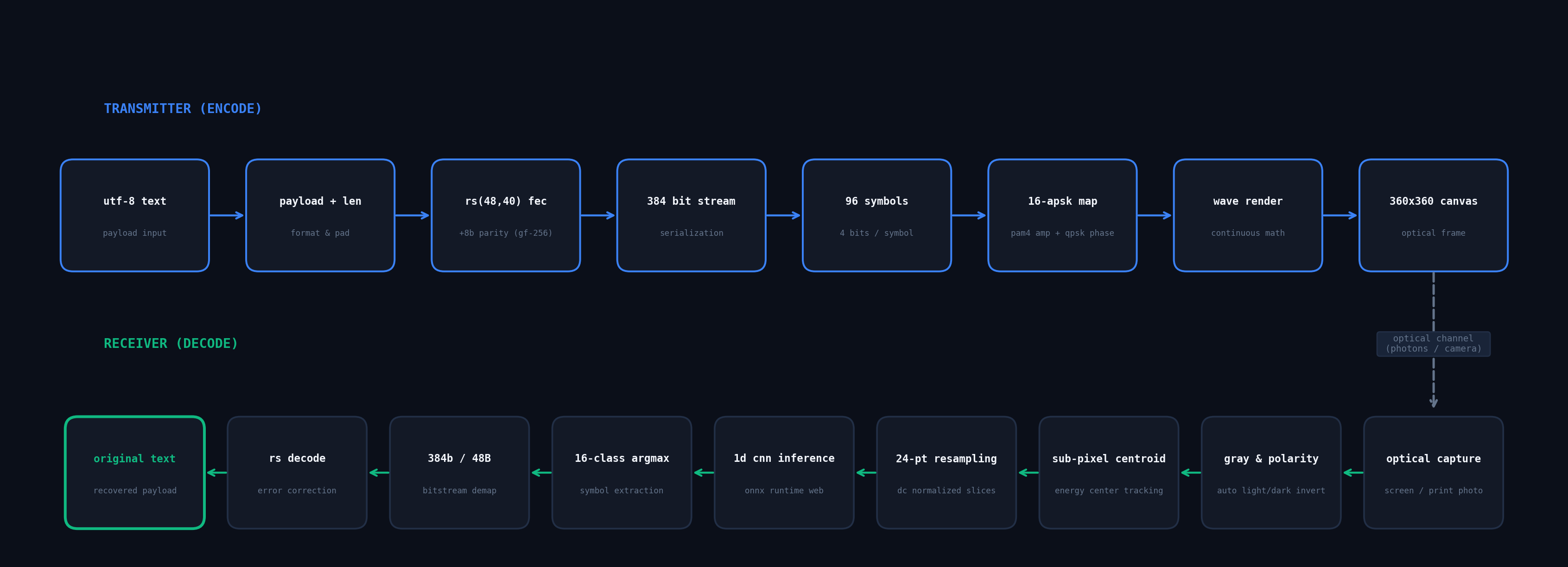

End-to-End Signal Pipeline
Signal pipeline Signal pipeline
Scheme16-APSK
CodecRS(48,40) GF-256
Payload Limit39 Bytes
Parity Budget8 Bytes (16.7%)
Symbol Grid8 Lines × 12 Sym
Symbol Resolution24 px / Symbol
Carrier Window360×360 px
Inference EPWebGPU / WASM

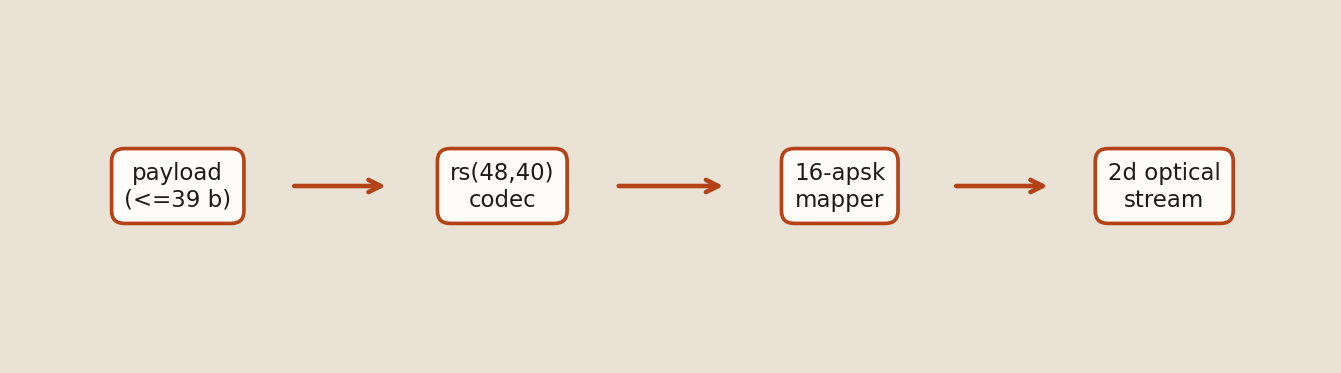

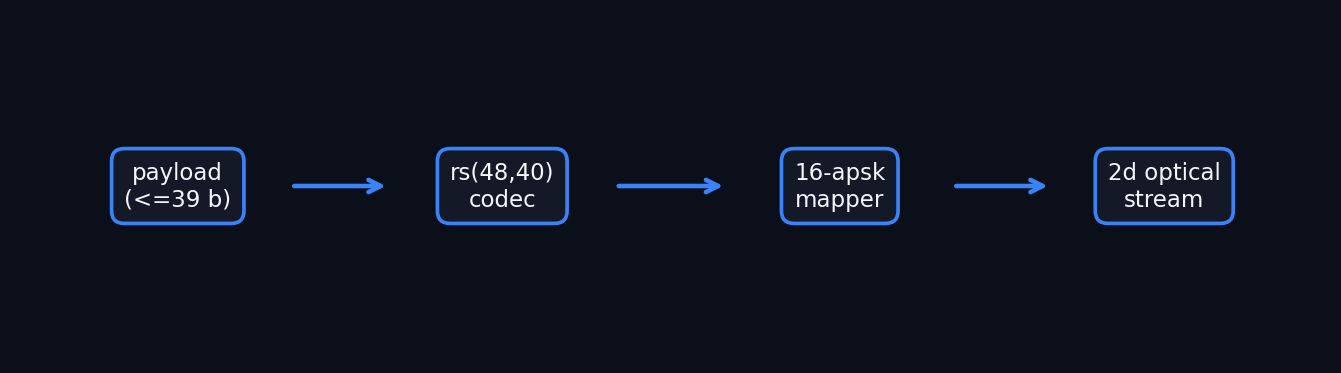

1. Transmitter Pipeline

UTF-8 payload padded and encoded via RS(48,40). Mapped to 96 16-APSK symbols driving continuous wave amplitude and phase modulation.

Transmitter pipeline Transmitter pipeline

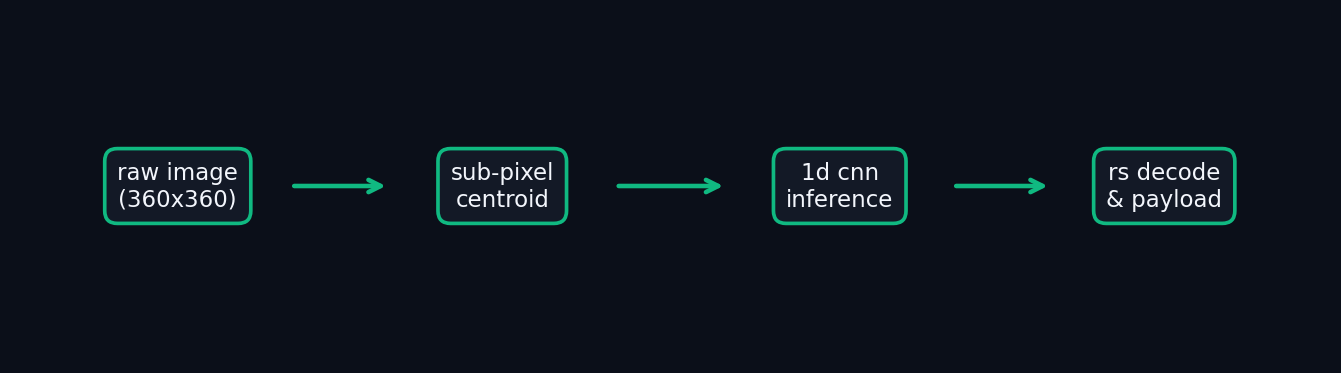

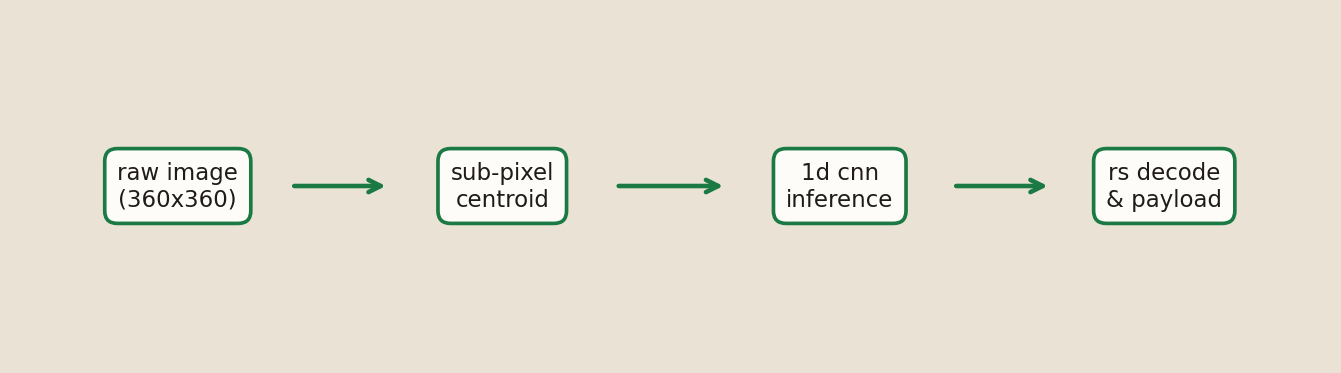

2. Receiver Pipeline

Sub-pixel weighted centroids locate wave coordinates. 24-point normalized line slices are classified via 1D CNN on ONNX Runtime Web.

Receiver pipeline Receiver pipeline
3. Sub-Pixel Centroid + 1D CNN

Replaces thresholding with continuous sub-pixel energy localization for blur and contrast invariance.

Weighted Centroid Sub-pixel skeleton tracking; invariant to stroke width, antialiasing bleed, and optical lighting.
1D CNN Classifier Resilient to optical lens curvature, perspective skew, and noise harmonics.
